#6859 [Story/DomainDiagramEd] Define the creation of a resource via the palette in the domain diagram via aspect

Release: Actifsource V11.3.0

It should be possible to define the creation of a resource via the palette in the domain diagram editor itself.

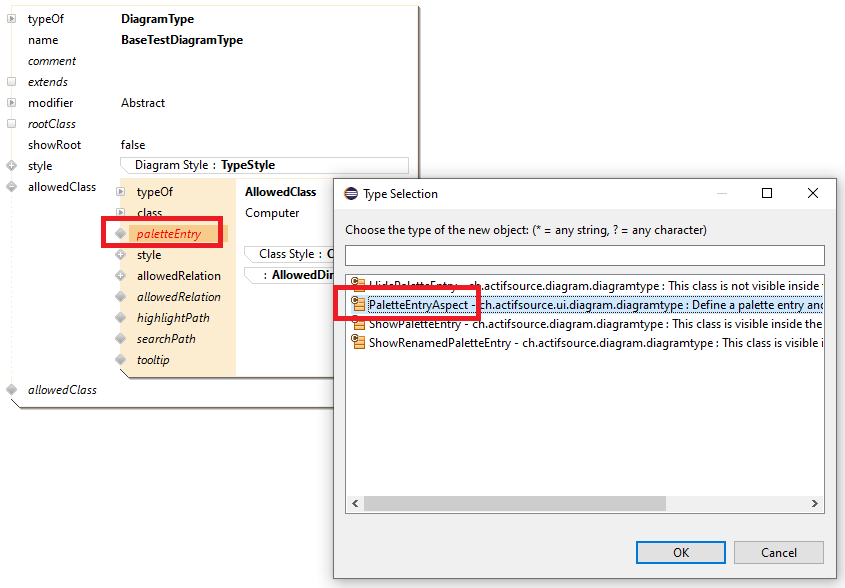

Use the 'PaletteEntryAspect':

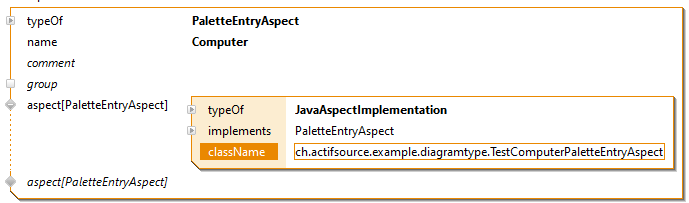

Add the java aspect:

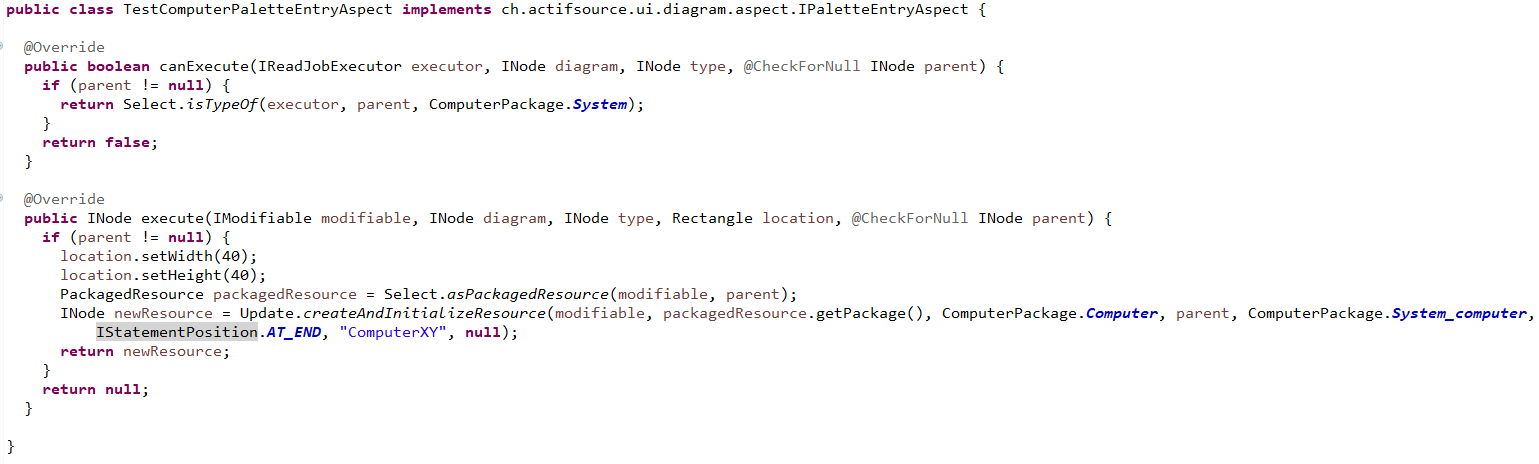

Add the java aspect implementation:

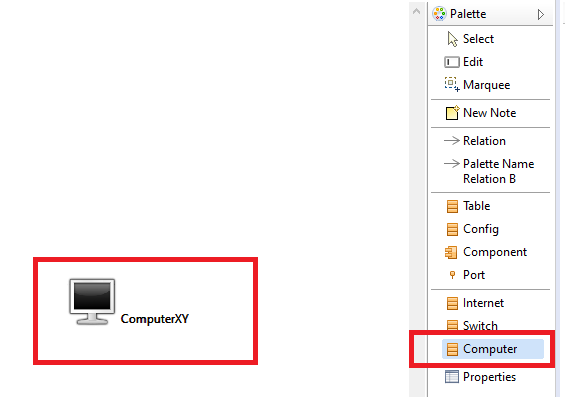

Use the aspect:



On github the example has been extended:
​

• https://github.com/actifsource/ch.actifsource.example.diagramtype
